BW-5XHRS

BW-5XHRS
  • LATEST revision Sony 1/3" Ex-View CCD
  • Brilliant 600 horizontal TV lines of resolution
  • Awesome 0.003 lux low light rating delivers crisp video in near darkness

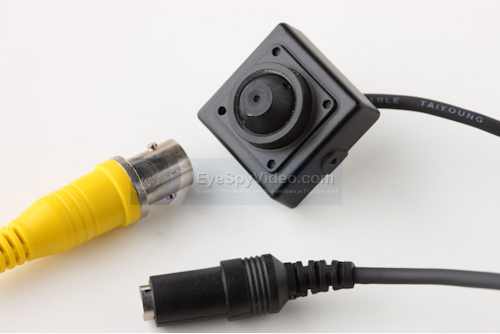

  • Tiny size (20mm x 20mm) and pinhole lens perfect for covert video applications
  • Includes FREE mounting bracket

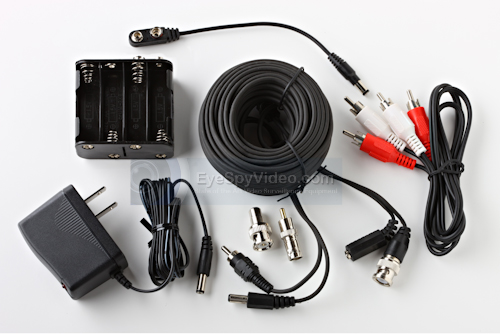

  • Includes FREE 7-piece camera accessory pack (ACC-PKG).

BW-5XHS DSP (digital signal processing) CCD exposed board camera module with Sony® Ex-View® high resolution 1/3" imager. 3.7mm wide angle pinhole lens included installed. This unit is compatible with ALL of our recorders and wireless equipment. It's also compatible with all consumer VCRs as well as most television sets (those with standard composite RCA or BNC inputs).

Profile:

Unbelievable performance for a pinhole camera! The 600+ horizontal TV lines / 0.003 lux cam is one of the world's smallest 1/3" CCD enclosed case camera and is capable of performing in lower light situations and creating higher resolution than any other pinhole camera. Newly revised 1/3" Sony® Ex-View® high resolution DSP (digital signal processing) CCD imager chipset.

It should be noted that we have six other black and white (monochrome) cameras with the same ultra low-light capable chipset: #BW-5XLL (low lux pinhole), #BW-5XLLM /XHRM (interchangeable mini board lens), #TV-BCSHR (high resolution CS mount) and weatherproof bullets #BW-4LL and #BW-4EX. The #BW-4XLL/EX and BW-5XLLM/XHRM are board lens cameras, which let more light into the imager than a pinhole lens and actually allow them to image in even lower lighting than this cam will do. However, for any covert pinhole available, the BW-5XLL and BW-5XHR are unmatched in low-light performance.

Common Applications:

• General covert / disguised use as it easy to hide behind many types of materials
• Economical indoor security solutions
• Onboard vehicle use including security and backup purposes
• OEM & scientific / machine purposes

Available Options:

DELUXE 7 piece bonus accessory kit included FREE with each camera ordered! ($60+ value) Features 25 ft. video + power cable which can be upgraded to 50', 100' or even 150' in your choice of black or white color!


Variations / Alternate Equipment to Consider:

It should be mentioned that very few people will notice a 'naked eye' difference between the picture from #BW-5XLL and #BW-5XHR. So, for typical general or security CCTV use, the high resolution factor could almost be considered a waste of money. The high resolution aspect is reserved primarily for those with advanced or specialized recording and/ or monitoring applications and equipment.

Though not covert, we also carry the #BW-5XLLM and #BW-5XHRM with interchangeable board lenses available (2.45mm, 2.97mm, 6mm, 8mm, 12mm, 16mm).


Cautions:

This is a non-weatherproof camera, and as such- must be treated with extra care and NEVER left outdoors without the proper protective housings.

Fixed pinhole lens is not interchangeable like many of our board-type lens cameras.

  • Please click here for more information concerning the basics of CCTV installation and operation.
  • Please click here for more information concerning video compatibility issues.
  • Please click here for more information regarding the differences between black and white and color cameras.



Camera Technical Specifications
Image Sensor
Monochrome High Resolution Sony 1/3" Ex-View DSP CCD
Resolution (TV lines)
600 horizontal TV lines (do not confuse with scanning lines / res.)
Effective Pixels
(NTSC): 752(H) x 494(V) pixels
Total Pixels
(NTSC): 768(H) x 505(V) pixels
Scanning System
2 : 1 interlace
Signal System
60 Hz
S/N (signal to noise) Ratio
More than 45 dB (AGC off)
Gamma Correction
d = 0.45
Electronic Shutter
1/60 < 1/100,000 sec. automatic
Back Light Compensation (BLC)
Automatic and built-in
Automatic Gain Control (AGC)
Automatic ([0 < 30 dB] / 41) dB and built-in
White Balance Control (WBC)
Automatic (2,100° < 8,000°K) and built-in
Low Light Sensitivity (lux)
Standard Lens
flat face 3.7mm wide angle pinhole lens
Lens Aperture
F1.2
Field of View (with std. lens)
72° horizontal x 54° vertical (90° diagonal) -- *click here for an important note about lens field of view*
Video Ouput Type
Composite 1 Vp-p @ 75 ohms unbalanced
Video Output Plug
BNC (connects easily to RCA with included adapter)
Input Voltage
9 < 14.5 volts DC center pin + positive
Power Consumption (milliamps)
100mA or less
Power Input Plug
2.1mm inner diam. x 5.5mm outer diam. center pin + positive
Dimensions
1" x .87" x .75" / 25mm x 22mm x 19mm
Weight
.7oz. / 19.4g
Cord Length
24" / 610mm
Operating Temperature
-10° C < +50° C
Storage Temperature
-30° C < +60° C
Warranty
one year
*Additonal Features

free camera accessory package for plug 'n' play use (ACC-PKG),

tiny size for covert video applications,

HIGHEST resolution and low light available for a pinhole / miniature camera

*Options Available


normal resolution SuperHAD version (BW-5HAD),

normal resolution, Ex-View version (BW-5LL)
