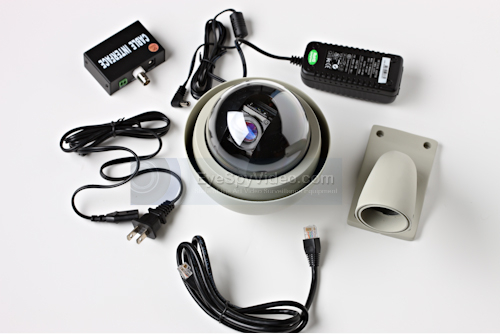

PTZ-510

PTZ-510
View detailed images (3)
DETAILED DESCRIPTION COMING SOON!!!

Features:
  • Build-in 10X optical zoom color block camera.
  • 1/4" type CCD sensor.
  • 10X Optical Zoom.
  • Continuous 360 degrees Pan Rotation and auto turn around over 180 degrees.
  • Continuous auto focus on the target accurately.
  • 64 presets available.
  • Turning Speed: 0.1 degree/second ∼ 240 degrees/second
  • Preset Speed: 300 degree/second
  • 5" housing, low temperature and easy installation.
  • RS-485 Communication Protocol and fully compatible with all DVR systems and IP servers.
  • On Screen Display for camera control.
  • Auto protection function when power is failed.
  • Outdoor Wall or suspending mount support
  • Support Auto Cruise and Cruise between two presets.
  • Auto Flip dome rotation.
  • Focusing System: Auto-Sensing, manually, Infinity, interval AF, Zoom trigger AF.
  • Auto white balance, backlight compensation, auto iris control, electronic shutte

Specifications:

Turn Speed: 0.3∼240 degrees per second
Horizontal Scan Scale: 360 degrees continuously
Manual Vertical Scan Scale: Less than 90 degrees
Preset: 64 presets
Preset Found Time: Less than 3 seconds
Zoom Found Time: Less than 1.65 seconds
Scan Precision: 0.225 degree +- 0.003 degree
Voltage: DC12V+-20%, 50hz+-10%
Power: Less than 10W
Camera Format: PAL/NTSC
Picture Elements: 752(H) x 583(V) for PAL / 768(H) x 494(V) for NTSC
S/N Ratio: >48dB
Horizontal Resolution: 540 Lines
Temperature: -45 degree C ∼ 50 degree C
Baud Rate: 2400, 4800, 9600
Details
SKU 7681000PTZ510
Weight 6.00 lbs

Price: $749.95
