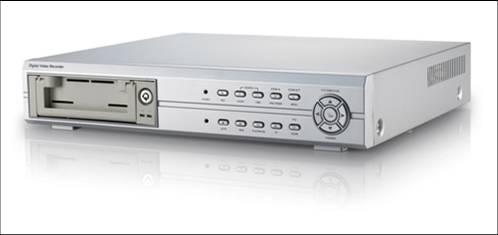

DVR-A4NX Networking Stand Alone 4 Channel DVR M-JPEG Triplex

DVR-A4NX Networking Stand Alone 4 Channel DVR M-JPEG Triplex
View detailed images (1)
  • SAVE 15 % off our regular low price!
  • Economical 4 Channel Networkable Security Digital Video Recorder
  • Superior picture quality in playback
  • Convenient back-up : CD-RW / USB
  • Multiple languages supported
  • 30FPS NTSC / 25 FPS PAL
  • Viewing software included
  • Easy to use and install by yourself.

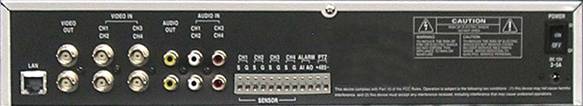

  • 4 video inputs and 2 video outputs
  • Selectable one among 4 channel AUDIO inputs and 2 audio outputs.
  • Monitored and controlled by PC Client program via network.
  • Support Motion sensor
  • 4 sensor inputs and 1 alarm output.
  • Support NTSC/PAL mode by hardware setting.
  • Support various time intervals to record. (30, 15, 10, 7, 5, 4, 3, 2, 1 @ NTSC)
  • Strong functions of recording. (Select any camera input, trigger source (contact dry sensor, timer, manual), recording mode (QUAD/EACH) to record.)
  • support up to 2HDDs up to 2 Tera Bytes total
  • Support HDD overwrite function.
  • Powerful play function. (REW:128, 64, 32, 16, 8, 4. FF:4, 8, 16, 32, 64, 128. Slow play: 1/2, 1/4, 1/8. Support one frame play. )
  • Easy to find the start point on play mode using event search and time search.
  • Support HDDviewer program in order to play and capture the data of HDD under the PC base.

DVR-4SX Specifications
OS Real-Time OS
Video Input 4 Channel
Video Output 2 Channel
Video Input Standard NTSC / PAL
Monitoring Resolution NTSC 640x480
PAL 640x576
Recording Resolution NTSC 640x224
PAL 640x272
Display Frame Rate NTSC 120 fps (quad) / 30 fps (each)
PAL 100 fps (quad) / 25 fps (each)
Recording Frame Rate NTSC 30 fps (quad) / 7.5 fps (each)
PAL 25 fps (quad) / 6.25 fps (each)
Recording Mode Continuous / Motion Sensor
Display Mode Full / Quad
Compression Format Motion JPEG (8~20K bytes / frame)
Image Size
     (Each Channel)		 Low- 12 Kbytes / frame
Normal- 15 Kbytes / frame
High- 20 Kbytes / frame
Power AC/DC Adaptor (12v, 5A)
HDD Capacity HDDx2    up to 500GB
1 Internal, 1 in Rack
Motion Detection  On / Off and selectable motion sensitivity


Software Multi Viewer Software Ver 1.2
Microsoft Windows Windows 2000, XP
Camera Power  12V DC
Sensor / Alarm 4 Ch input / 1 Ch output
Operating Temp. / Humidity 5-40 ° C  20-80% RH
Loop Out 4 Channel
PTZ Pelco (Optional)
45%
Details
SKU 3441000DVRA4NX

Price: $275.95
Options
Optional Installed IEDE Hard Drive Storage
Due to Hard Drive Shortages Please Call for HDD Prices
Quantity
